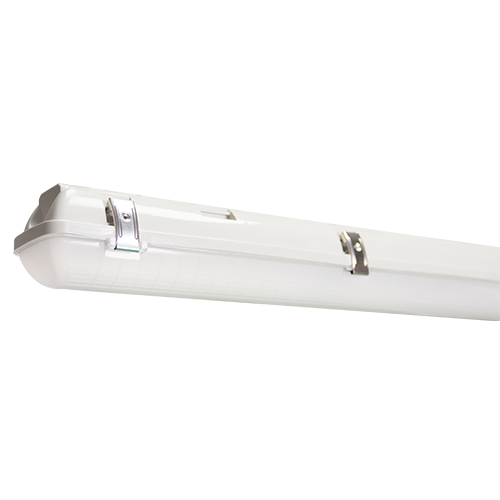

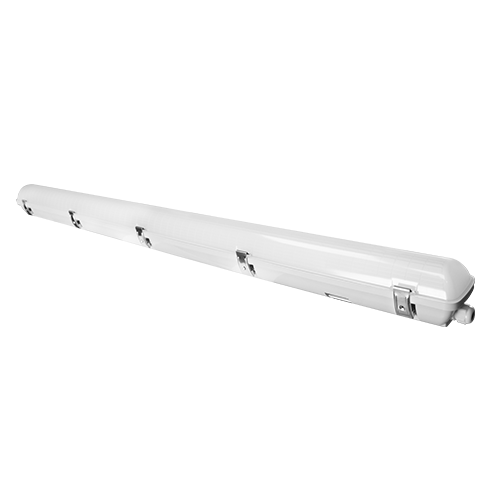

Polvo (SMD Version)
Our Polvo is a waterproof, dust proof and Corrosion proof luminaire, Which makes it the ideal luminaire for tough working conditions.
Fast, easy and Simple one person mounting.
Available in a variety of options:
Surface directly on the ceiling, with mounting brackets (included).
Wall on the wall vertically (connector downwards) with mounting brackets (included).
Suspended, on chains or on wire suspension (upon request).
Ideal for parking areas, production halls, warehouses, assembly halls, warehouses, electricity plants, mills, workshops, wood, paper & food industry.
Applications
- Hospital
- Warehouses
- Factories
- Parking
- Clean room
- Food Factories
| Code | Wattage | Lumen (lm) | Efficacy (lm) | CCT |
|---|---|---|---|---|
| PLV.L1265.W130.22W.WW.SMD | 22 | 3080 | 140 | 2700:3000 |
| PLV.L1265.W130.22W.NW.SMD | 22 | 3124 | 142 | 4000:4500 |
| PLV.L1265.W130.22W.CW.SMD | 22 | 3146 | 143 | 6000:6500 |
| PLV.L1265.W130.25W.WW.SMD | 25 | 3475 | 139 | 2700:3000 |
| PLV.L1265.W130.25W.NW.SMD | 25 | 3525 | 141 | 4000:4500 |
| PLV.L1265.W130.25W.CW.SMD | 25 | 3550 | 142 | 6000:6500 |
| PLV.L1265.W130.27W.WW.SMD | 27 | 3726 | 138 | 2700:3000 |
| PLV.L1265.W130.27W.NW.SMD | 27 | 3780 | 140 | 4000:4500 |
| PLV.L1265.W130.27W.CW.SMD | 27 | 3807 | 141 | 6000:6500 |
| PLV.L1265.W130.30W.WW.SMD | 30 | 4110 | 137 | 2700:3000 |
| PLV.L1265.W130.30W.NW.SMD | 30 | 4170 | 139 | 4000:4500 |
| PLV.L1265.W130.30W.CW.SMD | 30 | 4200 | 140 | 6000:6500 |
| PLV.L1265.W130.33W.WW.SMD | 33 | 4488 | 136 | 2700:3000 |
| PLV.L1265.W130.33W.NW.SMD | 33 | 4554 | 138 | 4000:4500 |
| PLV.L1265.W130.33W.CW.SMD | 33 | 4587 | 139 | 6000:6500 |
| PLV.L1265.W130.36W.WW.SMD | 36 | 4860 | 135 | 2700:3000 |
| PLV.L1265.W130.36W.NW.SMD | 36 | 4932 | 137 | 4000:4500 |
| PLV.L1265.W130.36W.CW.SMD | 36 | 4968 | 138 | 6000:6500 |
| PLV.L1265.W130.38W.WW.SMD | 38 | 5092 | 134 | 2700:3000 |
| PLV.L1265.W130.38W.NW.SMD | 38 | 5168 | 136 | 4000:4500 |
| PLV.L1265.W130.38W.CW.SMD | 38 | 5206 | 137 | 6000:6500 |
| PLV.L1265.W130.42.5W.WW.SMD | 42.5 | 5610 | 132 | 2700:3000 |
| PLV.L1265.W130.42.5W.NW.SMD | 42.5 | >5652 | 133 | 4000:4500 |
| PLV.L1265.W130.42.5W.CW.SMD | 42.5 | 5695 | 134 | 6000:6500 |
| PLV.L1265.W130.52W.WW.SMD | 52 | 6656 | 128 | 2700:3000 |
| PLV.L1265.W130.52W.NW.SMD | 52 | 6760 | 130 | 4000:4500 |
| PLV.L1265.W130.52W.CW.SMD | 52 | 6864 | 132 | 6000:6500 |
| PLV.L1265.W130.74W.WW.SMD | 74 | 9324 | 126 | 2700:3000 |
| PLV.L1265.W130.74W.NW.SMD | 74 | 9454 | 127 | 4000:4500 |
| PLV.L1265.W130.74W.CW.SMD | 74 | 9472 | 128 | 6000:6500 |
N.B:
± Luminous flus & connected electrical load are subject to an initial tolerance of up to +/- 10%
Dimensions

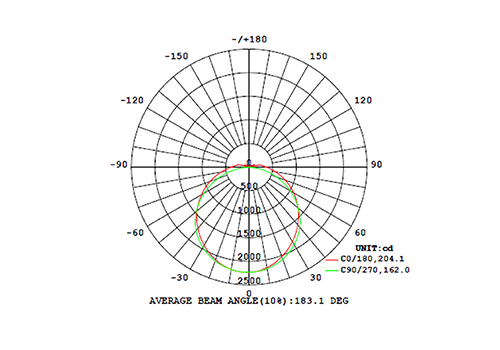

Photometrics
