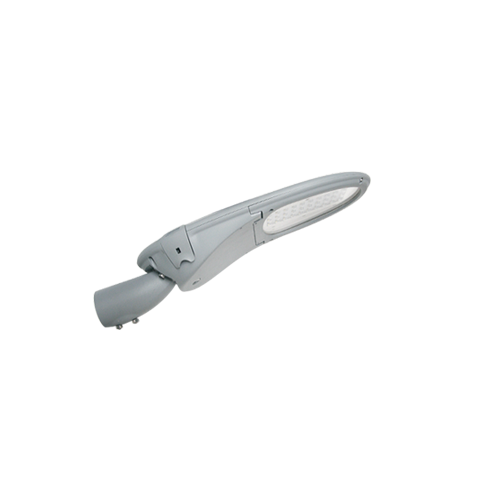

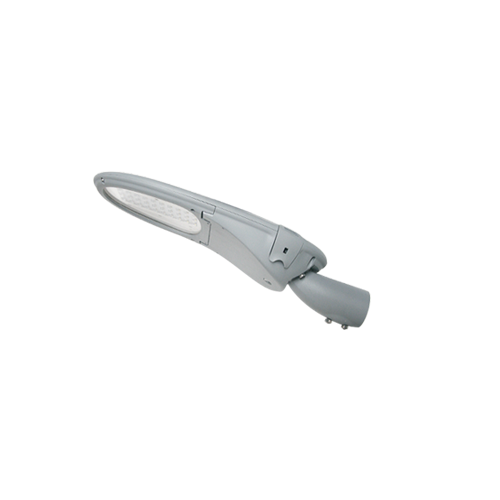

Ramsis 1
Combining the mechanical robustness, the architectural touch, the complete platform for lighting controls , intelligent
lighting networks and the minimum amount of energy to get the required light.
With the historical knowledge in street lighting luminaires, the up-to-date science of lighting, and the need more and more for improving the return of investment,
El Nassera developed its energy saving and cost efficient street lighting luminaire Ramsis.
Applications
- Residential streets
- Pedestrian paths
- Bike paths
- Car parks
- Roads and high ways
| No. of leds | Mili ampere | Wattage | Lumen | Dimension |
|---|---|---|---|---|
| 9 LEDs | 350 mA | 10 w | 1130 | A:520mm B:260mm C:115mm |
| 9 LEDs | 500 mA | 14 w | 1580 | A:520mm B:260mm C:115mm |
| 9 LEDs | 700 mA | 20 w | 2100 | A:520mm B:260mm C:115mm |
| 15 LEDs | 350 mA | 16 w | 1800 | A:520mm B:260mm C:115mm |
| 15 LEDs | 500 mA | 24 w | 2600 | A:520mm B:260mm C:115mm |
| 15 LEDs | 700 mA | 34 w | 3500 | A:520mm B:260mm C:115mm |
| 18 LEDs | 350 mA | 20 w | 2200 | A:520mm B:260mm C:115mm |
| 18 LEDs | 500 mA | 28 w | 3150 | A:520mm B:260mm C:115mm |
| 18 LEDs | 700 mA | 40 w | 4200 | A:520mm B:260mm C:115mm |
| 24 LEDs | 350 mA | 26 w | 3000 | A:520mm B:260mm C:115mm |
| 24 LEDs | 500 mA | 38 w | 4200 | A:520mm B:260mm C:115mm |
| 24 LEDs | 700 mA | 53 w | 5700 | A:520mm B:260mm C:115mm |
| 30 LEDs | 350 mA | 32 w | 3700 | A:520mm B:260mm C:115mm |
| 30 LEDs | 500 mA | 46 w | 5200 | A:520mm B:260mm C:115mm |
| 30 LEDs | 700 mA | 66 w | 7100 | A:520mm B:260mm C:115mm |

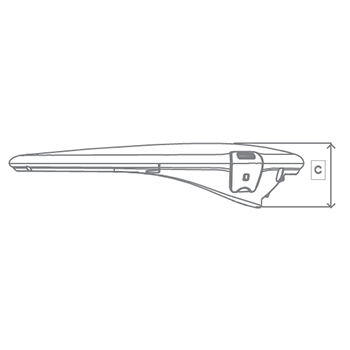

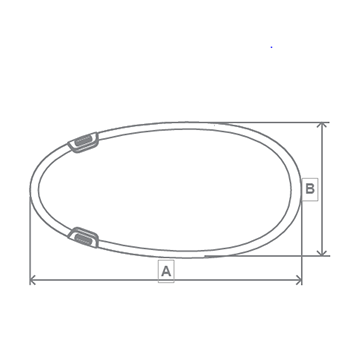

Dimensions
