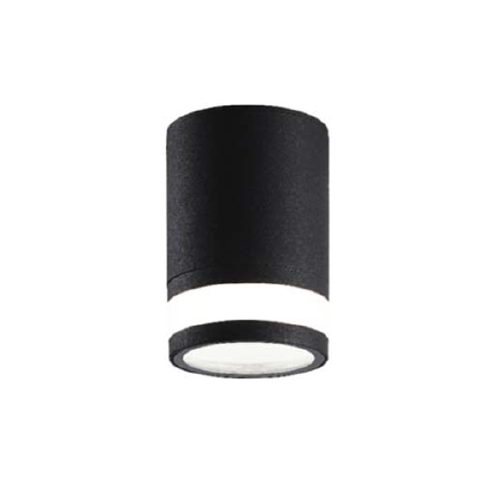

Splendor
Outdoor surface downlights with cylindrical shape are high bright light source.
Die-cast Aluminum Body, Glass diffuser.
Good heat dissipation, improve lamp life.
Applications
- Store, house
- Office, display room
- Exhibition halls
- Meeting /conference room
- Restaurants and hotels
- Shopping mall (clothing store, furniture store)
- Interior decoration and other suitable
- Car showroom
| Code | Wattage | LED Lumen (lm) | Output Lumen (lm) | CCT (K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| SPL.7.WW | 7 | 700 | 350 | 2700:3000 | A:135mm x Φ90mm | COB |
| SPL.7.NW | 7 | 770 | 385 | 4000:4500 | A:135mm x Φ90mm | COB |
| SPL.7.CW | 7 | 770 | 385 | 6000:6500 | A:135mm x Φ90mm | COB |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/‐ 10%.
Dimensions

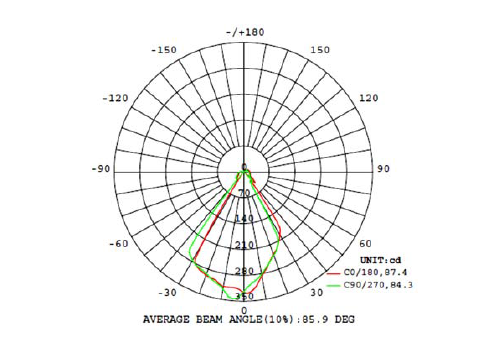

Photometrics
