Vito
Outdoor tunnel luminaire with rectangular shape.
Available with different wattages.
Die-cast Aluminium body with 5mm thickness ultra-thin glass diffuser.
The use of tunnels and underpasses is expanding, both to improve traffic flow, and to protect local environments from increased traffic exposure.
Easy installtion & Mainatenance.
Applications
- Tunnels
- General area flood lighting
| Code | Wattage | Efficacy (lm/W) | Dimensions | IP | IK |
|---|---|---|---|---|---|
| VITO.80.WW | 80 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.80.NW | 80 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.80.CW | 80 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.100.WW | 100 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.100.NW | 100 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.100.CW | 100 | >95 | 27.3x9.9x3.8 | 66 | 09 |
| VITO.150.WW | 150 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.150.NW | 150 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.150.CW | 150 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.180.WW | 180 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.180.NW | 180 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.180.CW | 180 | >95 | 29.7x11.9x3.9 | 66 | 09 |
| VITO.240.WW | 240 | >95 | 35.3x14.4x4.7 | 66 | 09 |
| VITO.240.NW | 240 | >95 | 35.3x14.4x4.7 | 66 | 09 |
| VITO.240.CW | 240 | >95 | 35.3x14.4x4.7 | 66 | 09 |
| VITO.300.WW | 300 | >95 | 35.3x14.4x4.7 | 66 | 09 |
| VITO.300.NW | 300 | >95 | 35.3x14.4x4.7 | 66 | 09 |
| VITO.300.CW | 300 | >95 | 35.3x14.4x4.7 | 66 | 09 |

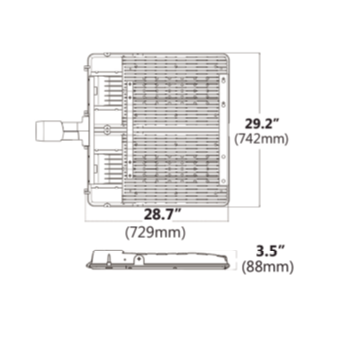

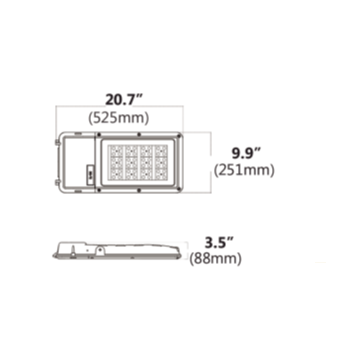

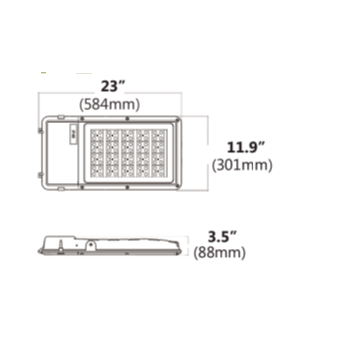

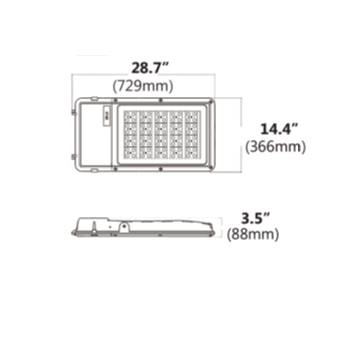

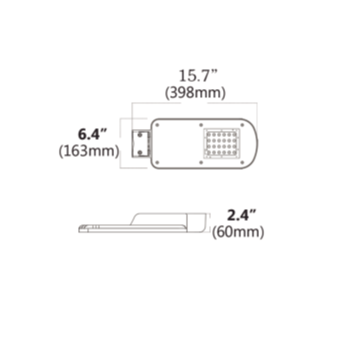

Dimensions
