ElCoronfal
The project consists of the implementation of electricity feeding for 465 residential buildings with a total of (10944) residential units in Dar Misr North Coronfol in the new city of Cairo in addition to the service buildings of the project (mosques - markets - clubs - schools)
Each distributor contains (17) cells and (4) rings that are fed with sector cables (3 * 400) mm2 from two transformer stations (New Cairo Station and Rehab Station) with a total length of (23000) meters longitudinal.

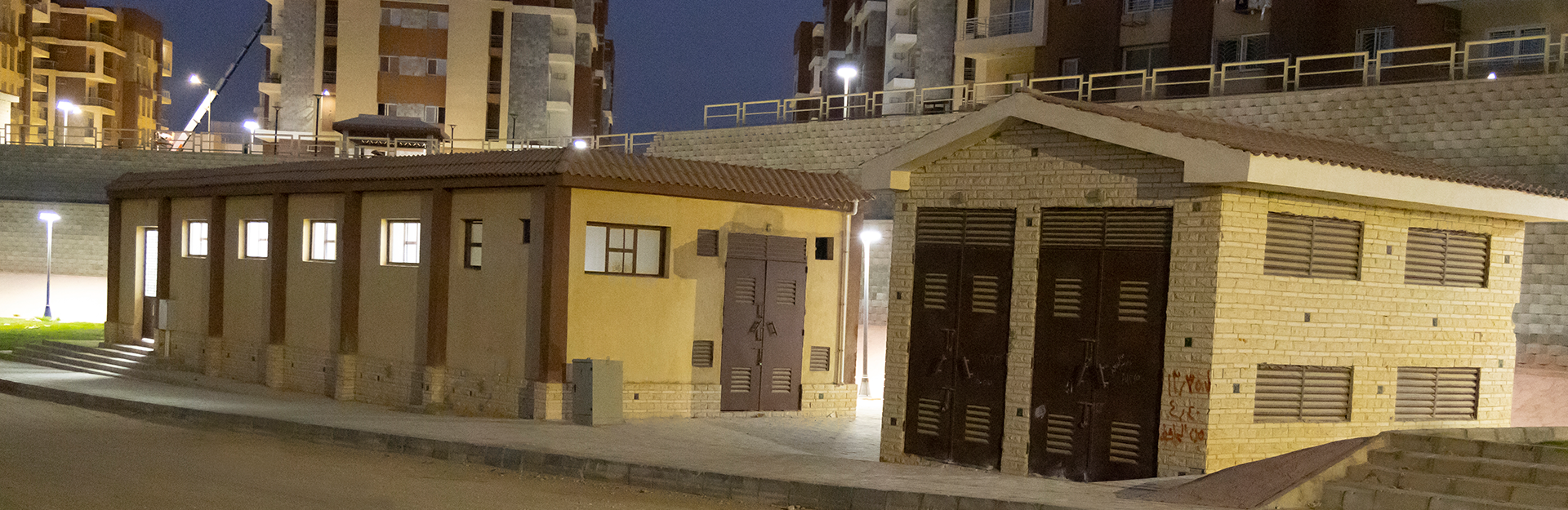

It contains a number of (66) transformer rooms with high accuracy from the architectural and aesthetic point of view.
The transformer rooms were fed and connected to the network of sector cables (3 * 240) mm2 with total lengths (36000) linear meters where the transformer rooms feed the panels of low voltage distribution boxes for buildings and service areas with a number of (470) low voltage distribution box through the network of low voltage cable sector (3 * 240+120) mm2 with total lengths (149000) meters longitudinal.

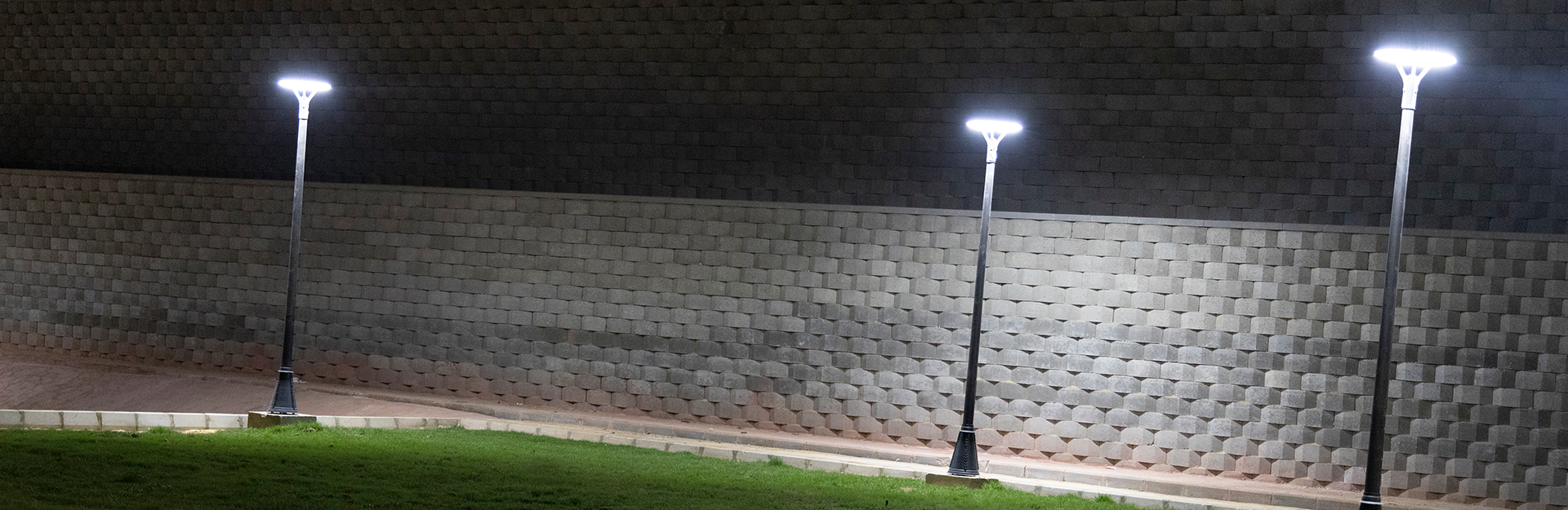

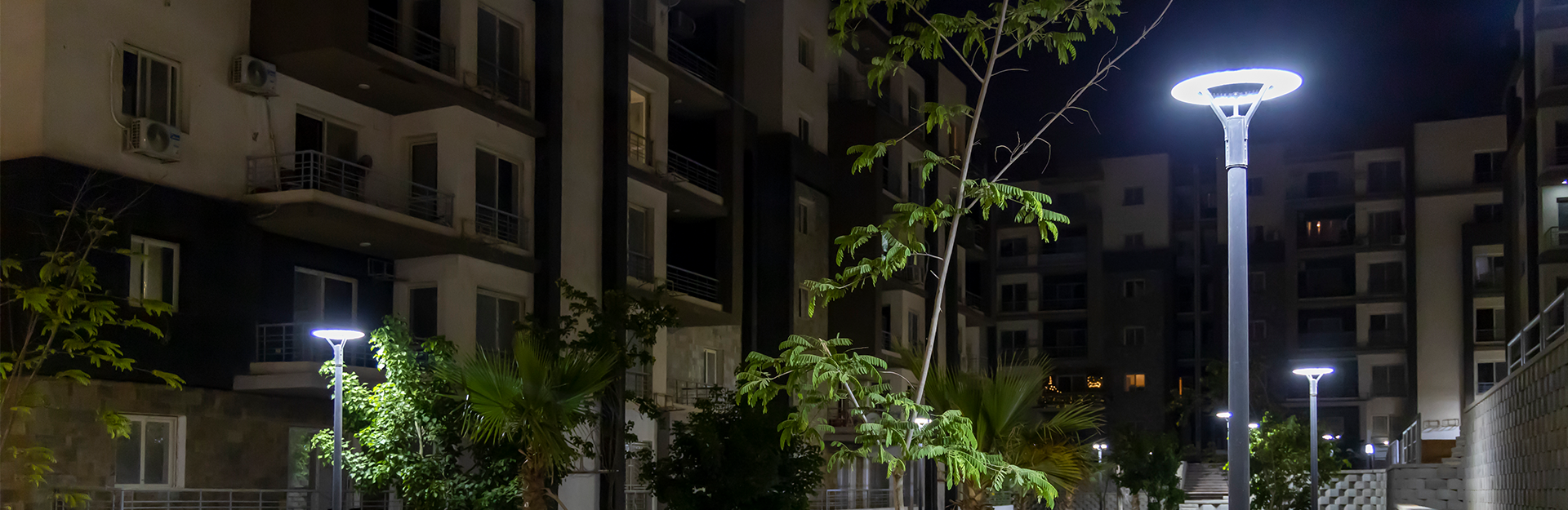

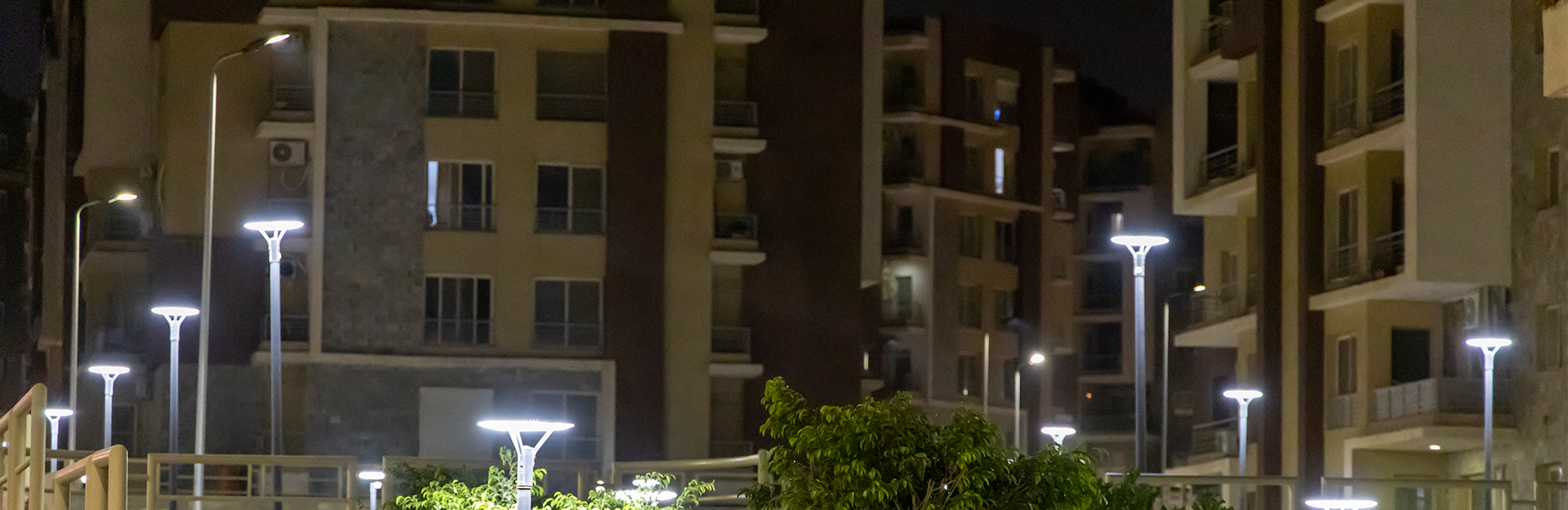

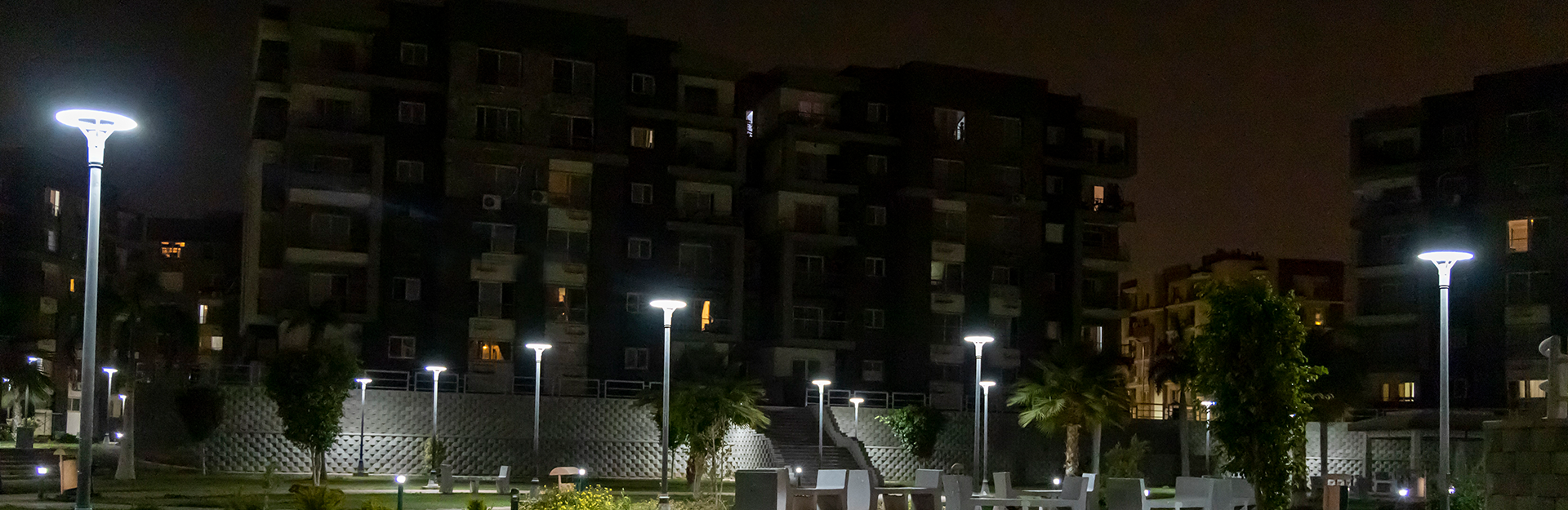

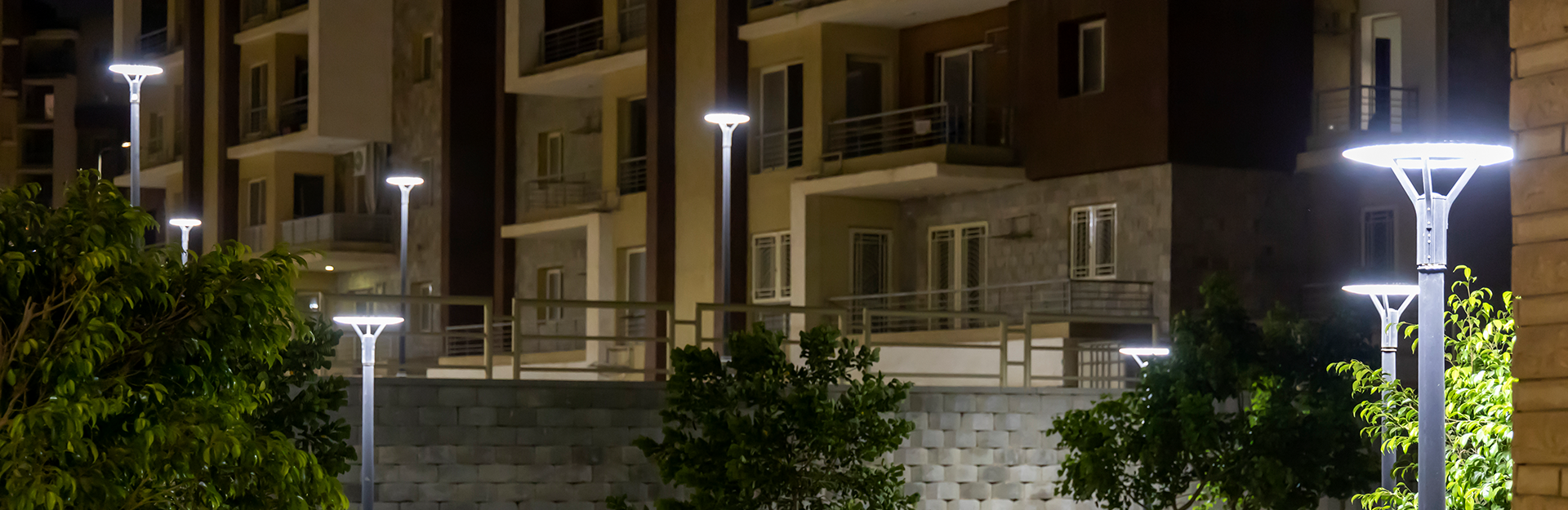

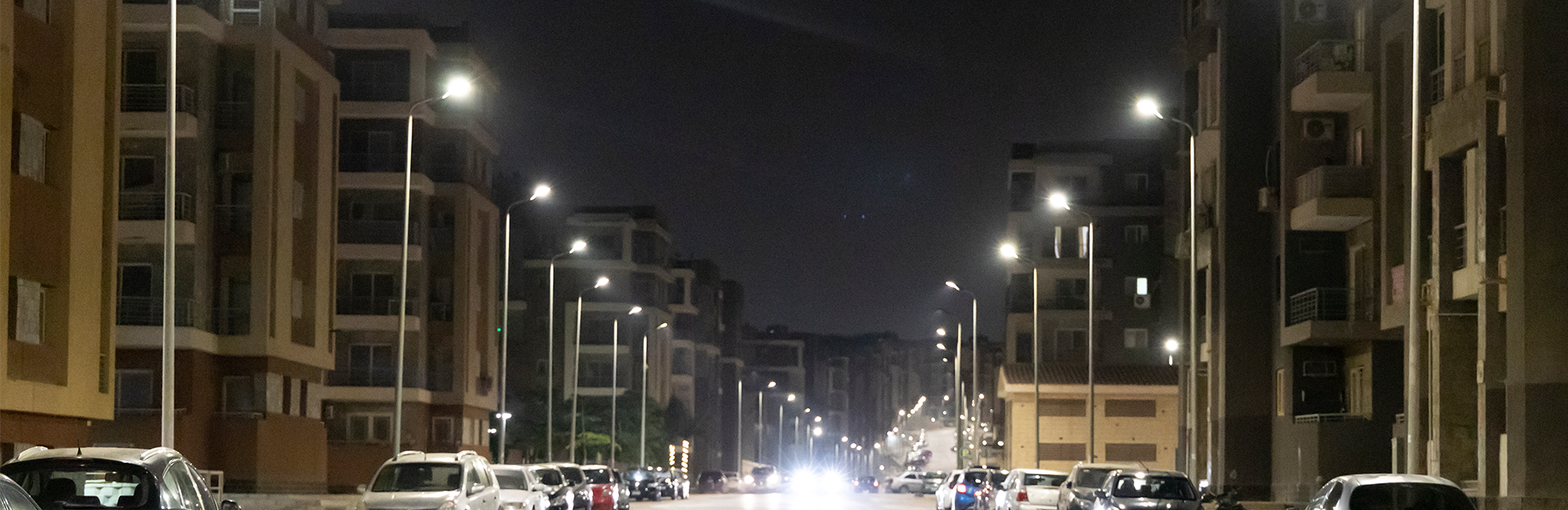

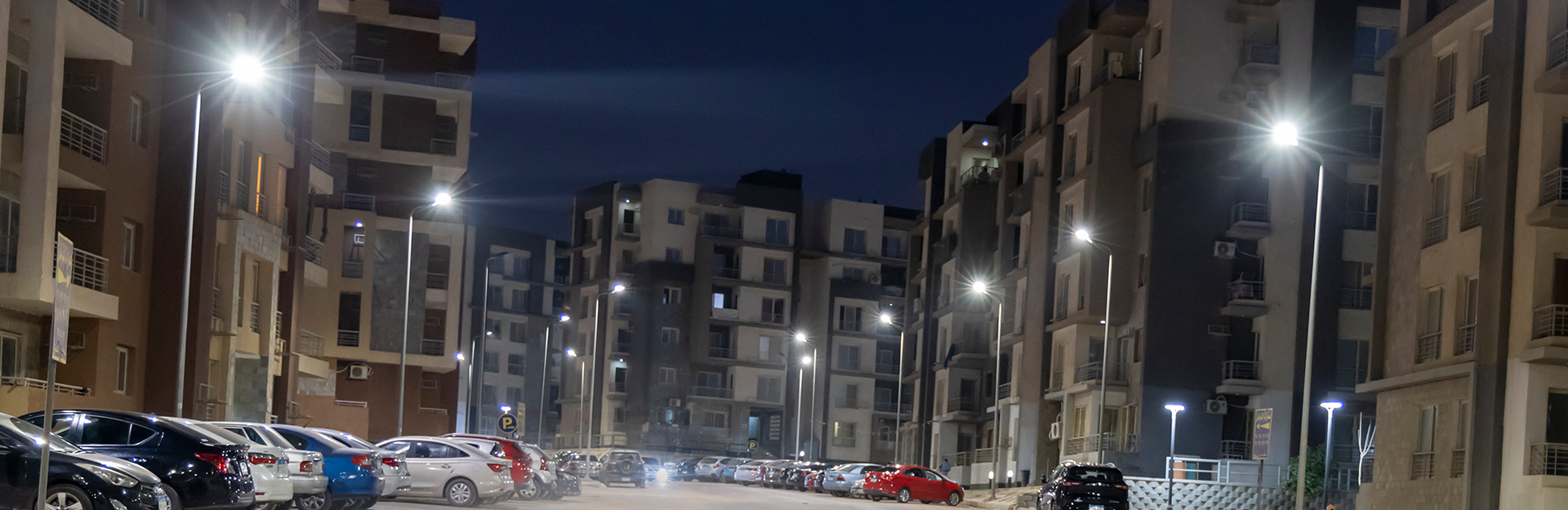

The network of public lighting of roads was implemented with poles of height (8) meters. Lamps produced by El Nassera Group Company with a number of (1070) columns and a network of lighting cables sector (4 * 25) mm2 with a total length of (36000) meters. In addition to the works of landscape, which contains polyards with a height of (60) cm and decorative columns with a height of (4) meters longitudinal.
