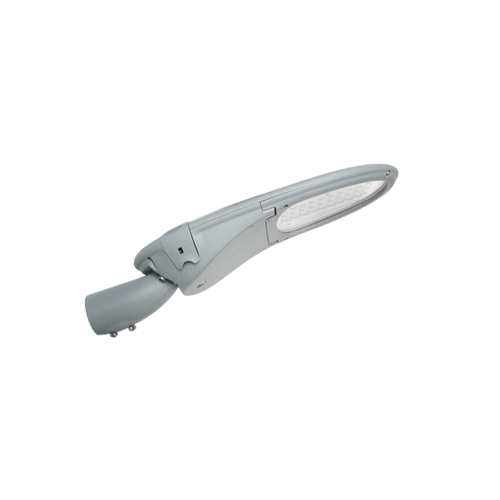

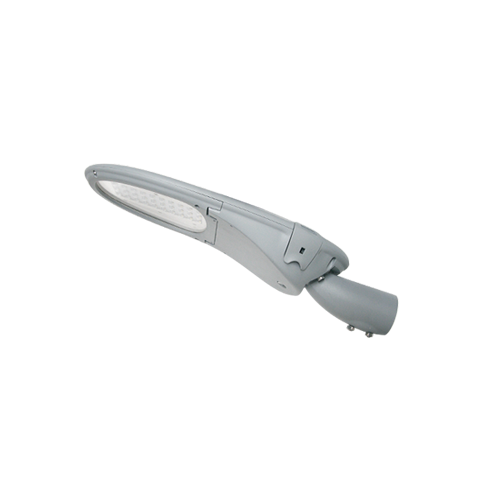

Ramsis 2
Combining the mechanical robustness, the architectural touch, the complete platform for lighting controls, intelligent
lighting networks and the minimum amount of energy to get the required light.
With the historical knowledge in street lighting luminaires,the up-to-date science of lighting, and the need fore more and more for improving the return of investment,
El Nassera developed its energy saving and cost efficient street lighting luminaire Ramsis.
Applications
- Residential streets
- Pedestrian paths
- Bike paths
- Car parks
- Roads and high ways
| No. of leds | Mili ampere | Wattage | Lumen | Dimension |
|---|---|---|---|---|
| 48 LEDs | 350 mA | 52 w | 6000 | A:665mm B:340mm C:160mm |
| 48 LEDs | 500 mA | 75 w | 8400 | A:665mm B:340mm C:160mm |
| 48 LEDs | 700 mA | 105 w | 11200 | A:665mm B:340mm C:160mm |
| 60 LEDs | 350 mA | 64 w | 7500 | A:665mm B:340mm C:160mm |
| 60 LEDs | 500 mA | 94 w | 10500 | A:665mm B:340mm C:160mm |
| 60 LEDs | 700 mA | 134 w | 14000 | A:665mm B:340mm C:160mm |
| 72 LEDs | 350 mA | 77 w | 9000 | A:665mm B:340mm C:160mm |
| 72 LEDs | 500 mA | 112 w | 12600 | A:665mm B:340mm C:160mm |
| 72 LEDs | 700 mA | 160 w | 17100 | A:665mm B:340mm C:160mm |

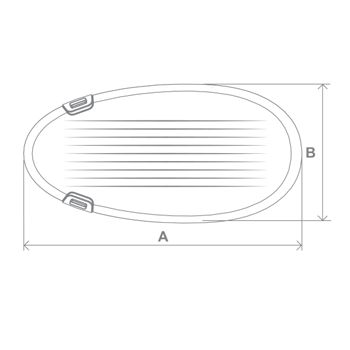

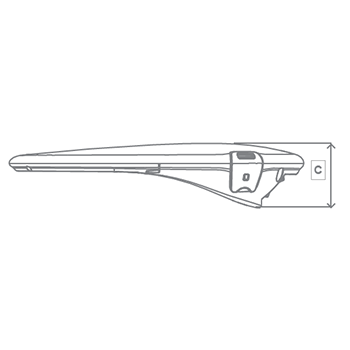

Dimensions
