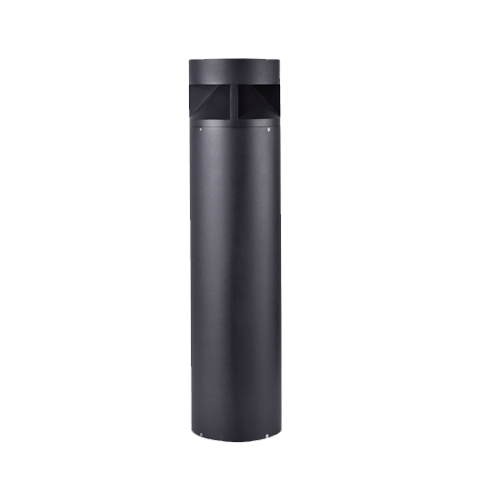

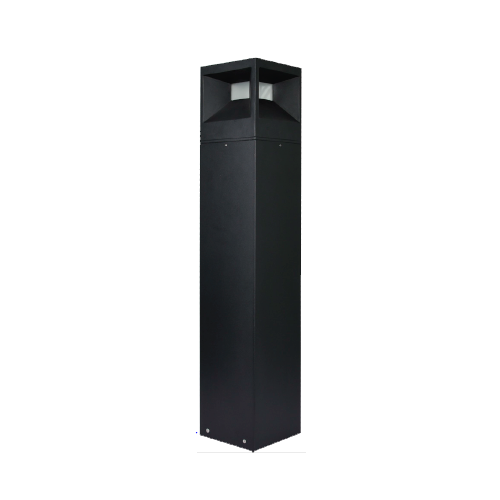

Bora
Outdoor bollard luminaire with different decorative shapes.
Full light emission 360°.
Die casting aluminum alloy and extruded aluminum alloy, PC diffuser.
Easy installation and Maintenance.
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (lm) | CCT (K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| BRA.800.R.15.WW | 15 | 1900 | 410 | 2700:3000 | A:800mm x B:Ø198mm | SMD |
| BRA.800.R.15.NW | 15 | 2225 | 480 | 4000:4500 | A:800mm x B:Ø198mm | SMD |
| BRA.800.R.15.CW | 15 | 2355 | 510 | 6000:6500 | A:800mm x B:Ø198mm | SMD |
| BRA.800.S.15.WW | 15 | 1900 | 410 | 2700:3000 | A:800mm x B:180mm x C:180mm | SMD |
| BRA.800.S.15.NW | 15 | 2225 | 480 | 4000:4500 | A:800mm x B:180mm x C:180mm | SMD |
| BRA.800.S.15.CW | 15 | 2355 | 510 | 6000:6500 | A:800mm x B:180mm x C:180mm | SMD |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/‐ 10%.

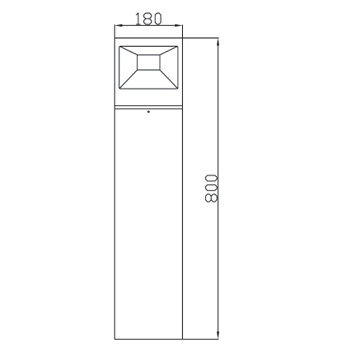

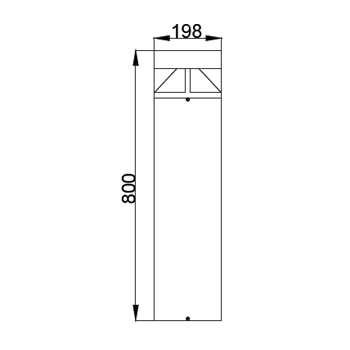

Dimensions
Photometrics
