Joy

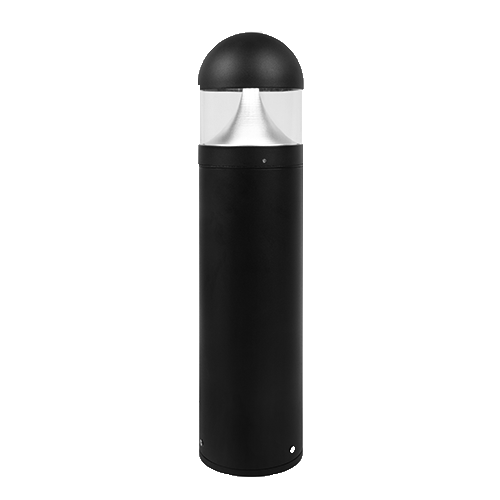

Outdoor bollard luminaire with three shapes flat or dome or edge cone head. Available with different shapes (1015 mm for dome luminaire and 980 mm for flat luminaire ,995 mm for edge cone luminaire).
Die casting aluminum alloy with extruded aluminum alloy and clear PC diffuser. Easy installtion and Mainatenance.
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (Lm)(lm) | CCT (K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| JOY.1015.D.10.WW | 10 | 1000 | 750 | 2700:3000 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.10.NW | 10 | 1100 | 800 | 4000:4500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.10.CW | 10 | 1150 | 820 | 6000:6500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.14.WW | 14 | 1400 | 1050 | 2700:3000 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.14.NW | 14 | 1540 | 1120 | 4000:4500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.14.CW | 14 | 1610 | 1148 | 6000:6500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.20.WW | 20 | 2000 | 1500 | 2700:3000 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.20.NW | 20 | 2200 | 1600 | 4000:4500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.20.CW | 20 | 2300 | 1640 | 6000:6500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.24.WW | 24 | 2400 | 1800 | 2700:3000 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.24.NW | 24 | 2640 | 1920 | 4000:4500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.24.CW | 24 | 2760 | 1968 | 6000:6500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.28.WW | 28 | 2800 | 2100 | 2700:3000 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.28.NW | 28 | 3080 | 2240 | 4000:4500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.1015.D.28.CW | 28 | 3220 | 2296 | 6000:6500 | A:1015mm x B:115mm x C:Φ160mm | SMD |
| JOY.995.EC.10.WW | 10 | 1000 | 750 | 2700:3000 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.10.NW | 10 | 1100 | 800 | 4000:4500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.10.CW | 10 | 1150 | 820 | 6000:6500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.14.WW | 14 | 1400 | 1050 | 2700:3000 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.14.NW | 14 | 1540 | 1120 | 4000:4500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.14.CW | 14 | 1610 | 1148 | 6000:6500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.20.WW | 20 | 2000 | 1500 | 2700:3000 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.20.NW | 20 | 2200 | 1600 | 4000:4500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.20.CW | 20 | 2300 | 1640 | 6000:6500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.24.WW | 24 | 2400 | 1800 | 2700:3000 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.24.NW | 24 | 2640 | 1920 | 4000:4500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.24.CW | 24 | 2760 | 1968 | 6000:6500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.28.WW | 28 | 2800 | 2100 | 2700:3000 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.28.NW | 28 | 3080 | 2240 | 4000:4500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.995.EC.28.CW | 28 | 3220 | 2296 | 6000:6500 | A:995mm x B:995mm x C:Φ160mm | SMD |
| JOY.980.F.10.WW | 10 | 1000 | 750 | 2700:3000 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.10.NW | 10 | 1100 | 800 | 4000:4500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.10.CW | 10 | 1150 | 820 | 6000:6500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.14.WW | 14 | 1400 | 1050 | 2700:3000 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.14.NW | 14 | 1540 | 1120 | 4000:4500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.14.CW | 14 | 1610 | 1148 | 6000:6500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.20.WW | 20 | 2000 | 1500 | 2700:3000 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.20.NW | 20 | 2200 | 1600 | 4000:4500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.20.CW | 20 | 2300 | 1640 | 6000:6500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.24.WW | 24 | 2400 | 1800 | 2700:3000 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.24.NW | 24 | 2640 | 1920 | 4000:4500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.24.CW | 24 | 2760 | 1968 | 6000:6500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.28.WW | 28 | 2800 | 2100 | 2700:3000 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.28.NW | 28 | 3080 | 2240 | 4000:4500 | A:980mm x B:980mm x C:Φ160mm | SMD |
| JOY.980.F.28.CW | 28 | 3220 | 2296 | 6000:6500 | A:980mm x B:980mm x C:Φ160mm | SMD |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/‐ 10%

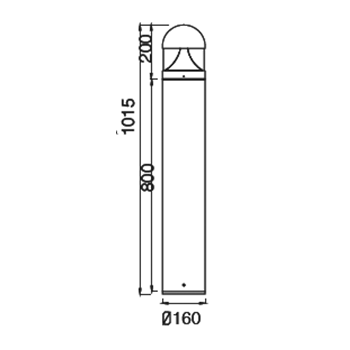

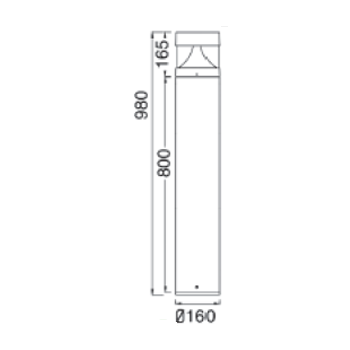

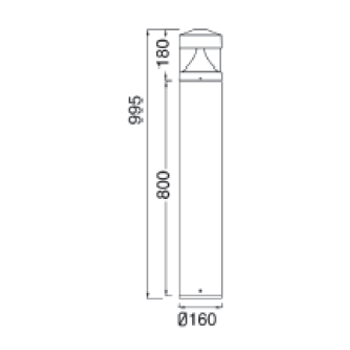

Dimensions

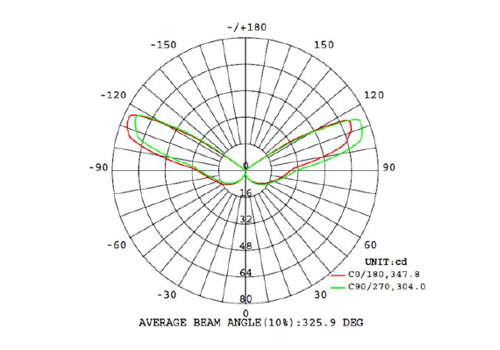

Photometrics
