Fedora

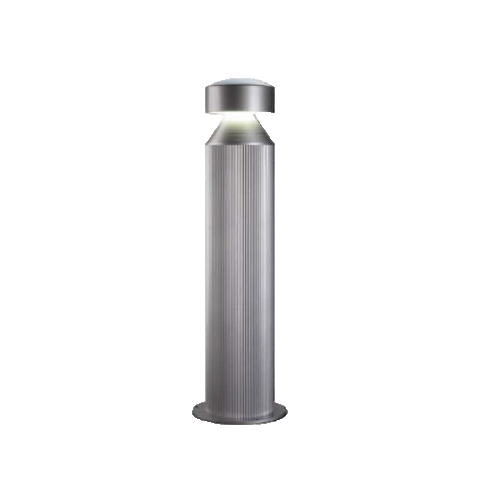

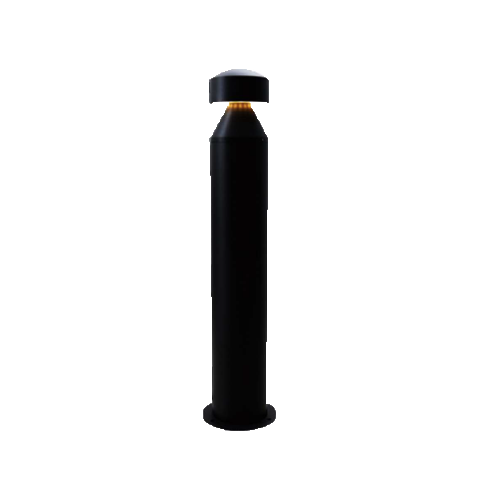

Outdoor bollard luminaire with round dome head.
Die-casting aluminum body, extruded aluminum pole and PMMA diffuser.
Surface anti-ageing electrostatic spray processing.
Easy installation and Maintenance
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (lm)(lm) | CCT (K | Dimension | LED Type |
|---|---|---|---|---|---|---|
| FDA.1000.R.25.WW | 25 | 2750 | 970 | 2700:3000 | A:1000mm x B:Φ232x C:Φ168 | SMD |
| FDA.1000.R.25.NW | 25 | 2830 | 1000 | 4000:4500 | A:1000mm x B:Φ232x C:Φ168 | SMD |
| FDA.1000.R.25.CW | 25 | 2915 | 1030 | 6000:6500 | A:1000mm x B:Φ232x C:Φ168 | SMD |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/- 10%.

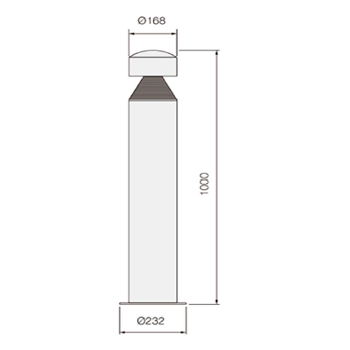

Dimensions

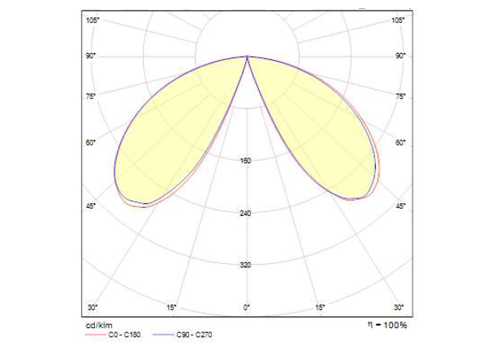

Photometrics
