Brilu

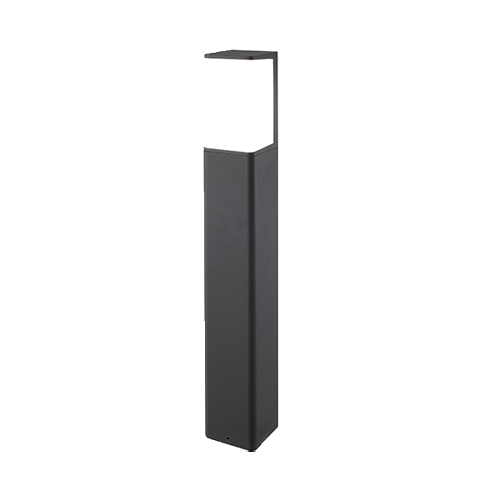

Outdoor decorative LED bollard luminaire with 3 lighting square PC sides.
Available with different body color: Matt Black/Dark Grey/Anthracite/Silver/Matt White.
Die cast aluminum body with Frost PC diffuser.
Easy installation and Maintenance.
Reliable performance and long life time.
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (Lm) | CCT (K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| BRL.650.9.SQ.WW | 9 | 990 | 495 | 2700:3000 | A:650mm x B:85mm x C:85mm | SMD |
| BRL.650.9. SQ.NW | 9 | 1080 | 540 | 4000:4500 | A:650mm x B:85mm x C:85mm | SMD |
| BRL.650.9.SQ.CW | 9 | 1080 | 540 | 6000:6500 | A:650mm x B:85mm x C:85mm | SMD |
| BRL.650.9.R.WW | 9 | 990 | 495 | 2700:3000 | A:650mm x B:Φ90mm | SMD |
| BRL.650.9.R.NW | 9 | 1080 | 540 | 4000:4500 | A:650mm x B:Φ90mm | SMD |
| BRL.650.9.R.CW | 9 | 1080 | 540 | 6000:6500 | A:650mm x B:Φ90mm | SMD |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/- 10%

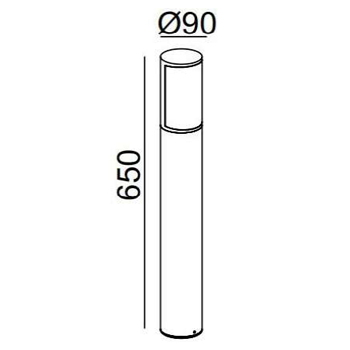

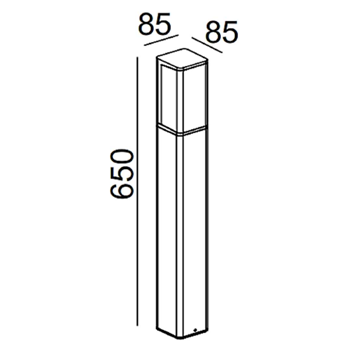

Dimensions

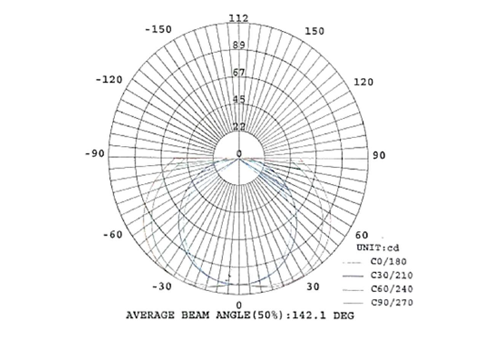

Photometrics
