Romeo

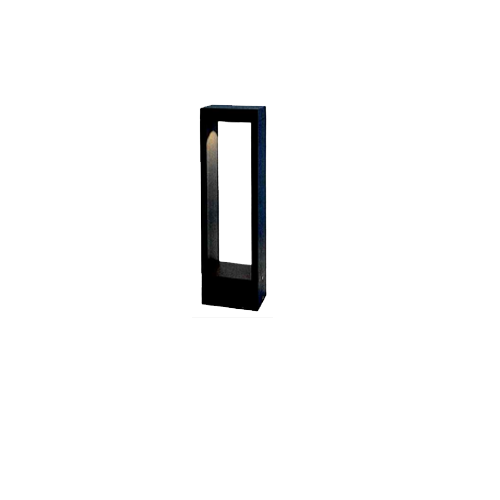

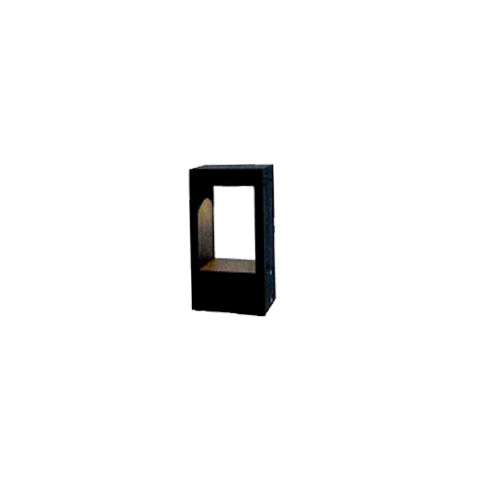

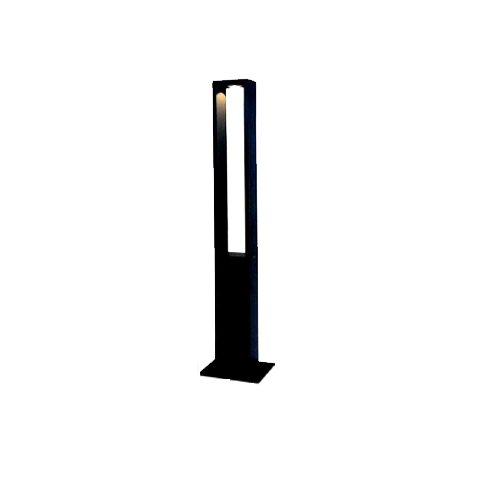

Outdoor bollard luminaire with different decorative door shapes, one window.
Available with different heights :(230mm, 400mm for mini-bollard, 650mm, 800mm, and 1500mm for bollard luminare).
Die-casting aluminum body with Extruded aluminum pole and Clear Glass diffuser. Easy installation and maintenance.
Build-in driver.
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (lm) | CCT (K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| ROM.230.10. WW | 10 | 1000 | 455 | 2700:3000 | A:230mm x B:120mm x C:80mm | COB |
| ROM.230.10. NW | 10 | 1100 | 470 | 4000:4500 | A:230mm x B:120mm x C:80mm | COB |
| ROM.230.10. CW | 10 | 1100 | 470 | 6000:6500 | A:230mm x B:120mm x C:80mm | COB |
| ROM.400.10. WW | 10 | 1000 | 455 | 2700:3000 | A:400mm x B:120mm x C:80mm | COB |
| ROM.400.10. NW | 10 | 1100 | 470 | 4000:4500 | A:400mm x B:120mm x C:80mm | COB |
| ROM.400.10. CW | 10 | 1100 | 470 | 6000:6500 | A:400mm x B:120mm x C:80mm | COB |
| ROM.650.10. WW | 10 | 1000 | 455 | 2700:3000 | A:650mm x B:120mm x C:80mm | COB |
| ROM.650.10. NW | 10 | 1100 | 470 | 4000:4500 | A:650mm x B:120mm x C:80mm | COB |
| ROM.650.10. CW | 10 | 1100 | 470 | 6000:6500 | A:650mm x B:120mm x C:80mm | COB |
| ROM.800.10. WW | 10 | 1000 | 455 | 2700:3000 | A:800mm x B:120mm x C:80mm | COB |
| ROM.800.10. NW | 10 | 1100 | 470 | 4000:4500 | A:800mm x B:120mm x C:80mm | COB |
| ROM.800.10. CW | 10 | 1100 | 470 | 6000:6500 | A:800mm x B:120mm x C:80mm | COB |
| ROM.1500.10. WW | 10 | 1000 | 455 | 2700:3000 | A:1500mm x B:120mm x C:80mm | COB |
| ROM.1500.10. NW | 10 | 1100 | 470 | 4000:4500 | A:1500mm x B:120mm x C:80mm | COB |
| ROM.1500.10. CW | 10 | 1100 | 470 | 6000:6500 | A:1500mm x B:120mm x C:80mm | COB |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/- 10%.

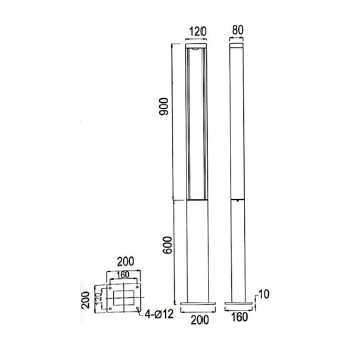

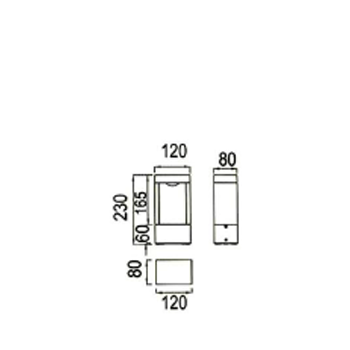

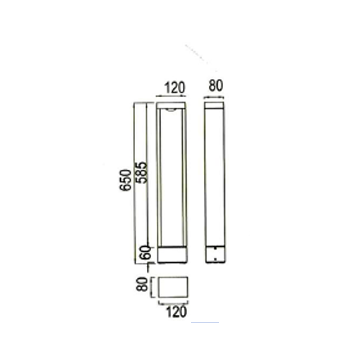

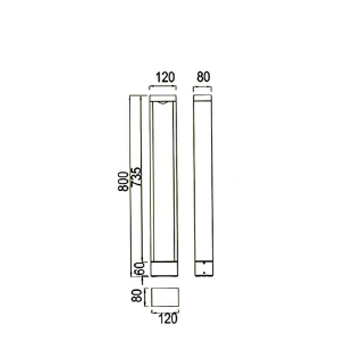

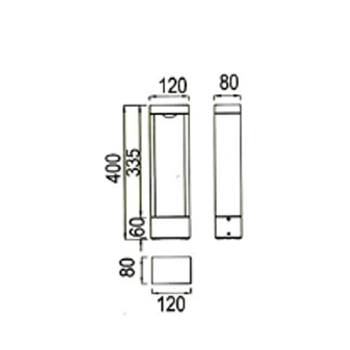

Dimensions

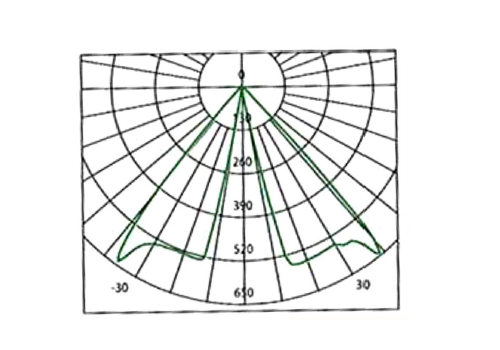

Photometrics
