Tripple

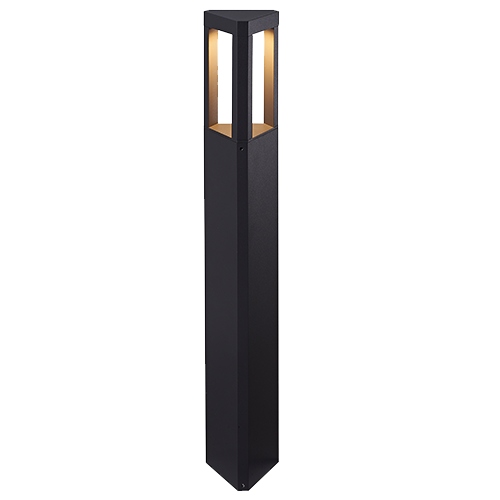

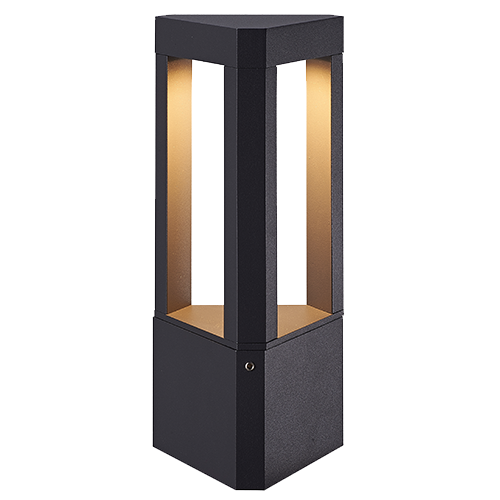

Decorative 3 windows bollard luminaire with triangular body shape.
High quality performance ideal for walkways.
Aluminum body with clear glass diffuser and Powder coated finish.
Available in two version 650mm, 1000mm heights.
Easy maintenance and installation.
With Built in Driver.
Applications
- Residential Buildings Walkways
- Luxury Compounds and private villas
- Parks pathways
- Commercial malls landscape
| Code | Wattage | LED Lumen (lm) | Output Lumen (lm) | CCT(K) | Dimension | LED Type |
|---|---|---|---|---|---|---|
| TRP.350.5. WW | 5 | 500 | 250 | 2700:3000 | A:350mm x B:105mm x C:91mm | COB |
| TRP.350.5. NW | 5 | 550 | 275 | 4000:4500 | A:350mm x B:105mm x C:91mm | COB |
| TRP.350.5. CW | 5 | 550 | 275 | 6000:6500 | A:350mm x B:105mm x C:91mm | COB |
| TRP.650.7. WW | 7 | 700 | 350 | 2700:3000 | A:650mm x B:105mm x C:91mm | COB |
| TRP.650.7. NW | 7 | 770 | 385 | 4000:4500 | A:650mm x B:105mm x C:91mm | COB |
| TRP.650.7. CW | 7 | 770 | 385 | 6000:6500 | A:650mm x B:105mm x C:91mm | COB |
- Luminous flux & connected electrical load are subject to an initial tolerance of up to +/- 10%.

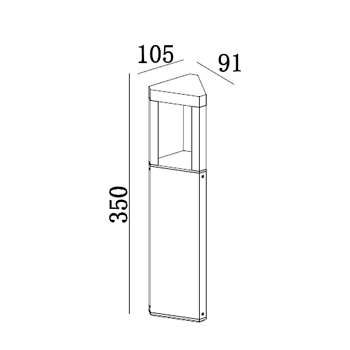

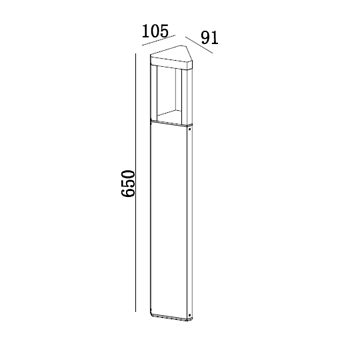

Dimensions

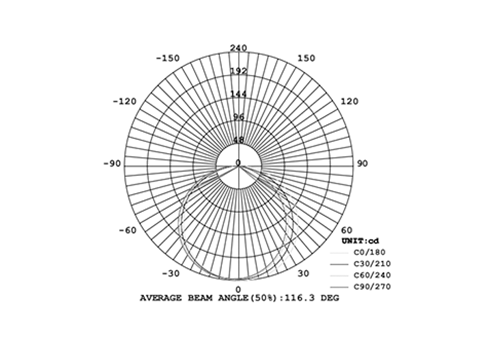

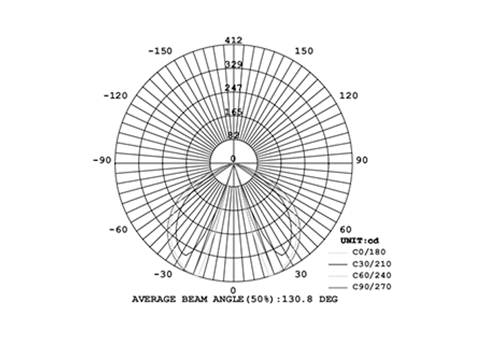

Photometrics
